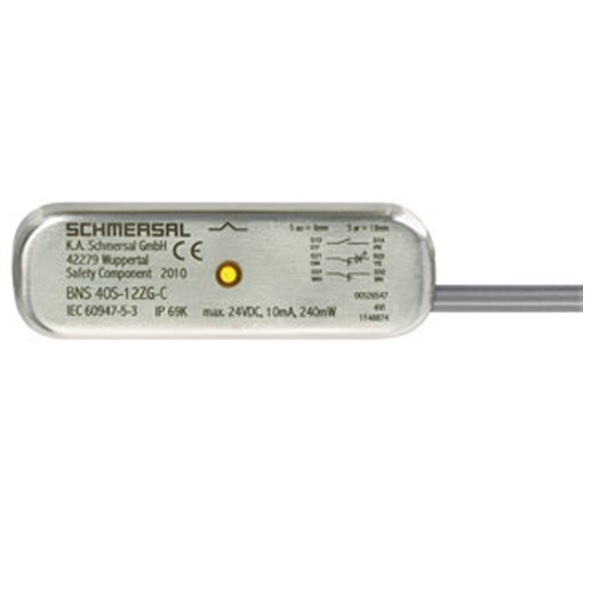

Schmersal Stainless Steel Magnetic Safety Sensor - BNS 40S-12ZG-C 5,0M

Features

Schmersal magnetic safety sensors monitor the position of sliding, hinged and removable safety guards.
Ideal for use in very dirty environments, or where high hygienic standards are required (food production areas).
Able to be concealed under non-magnetic materials.
Stainless steel enclosure.
Cable connection suitable for the food industry.
Rectangular body and long life.
The LED is illuminated when the guard is closed.
Especially easy to clean through concealed threaded holes at the rear.
Coded - recommended actuators BPS 40S-1, BPS 40S-2, BPS 40S-1-C, BPS 40S-2-C, must be purchased separately.
Protection class IP69K.
Other varieties available on request.
Minor differences between the printed image and the original product may exist.

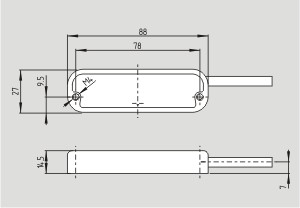

Code	Cat#	Dimensions W x H x L	Switching Voltage and Capacity	Contacts	LED Switching Display	Electrical Connection	Cable Length
3000644	BNS 40S-12ZG-C 5,0M	88mm x 27mm x 14.5mm	Max. 24 VDC / Max. 240 mW	1NO/2NC	Yes	Cable	5m
