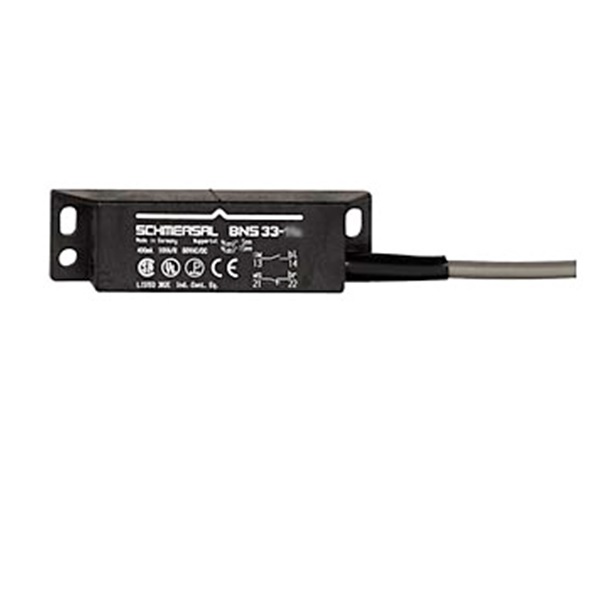

Schmersal Magnetic Safety Sensor - BNS 33-11Z
BNS 33.jpg
Features
  • Schmersal magnetic safety sensors monitor the position of sliding, hinged and removable safety guards.
  • Ideal for use in very dirty environments, or where high hygienic standards are required (food production areas).
  • Able to be concealed under non-magnetic materials.
  • Thermoplastic enclosure.
  • Rectangular body and long life.
  • Coded - recommended actuators BPS33, BPS33-2326, must be purchased separately.
  • Protection class IP67.
  • Other varieties available on request.
  • Minor differences between the printed image and the original product may exist.
Code Cat# Dimensions W x H x L Switching Voltage and Capacity Contacts LED Switching Display Electrical Connection Cable Length
1107770 BNS 33-11Z 88mm x 25mm x 13mm Max. 100 VAC/DC / Max. 10 W 1NO/1NC No Cable 1m
TD_BNS 33.jpg
