Schmersal Magnetic Safety Sensor - BNS 260-02Z-ST-L
Features
  • Schmersal magnetic safety sensors monitor the position of sliding, hinged and removable safety guards.
  • Ideal for use in very dirty environments, or where high hygienic standards are required (food production areas).
  • Able to be concealed under non-magnetic materials.
  • Thermoplastic enclosure.
  • Small body and long life.

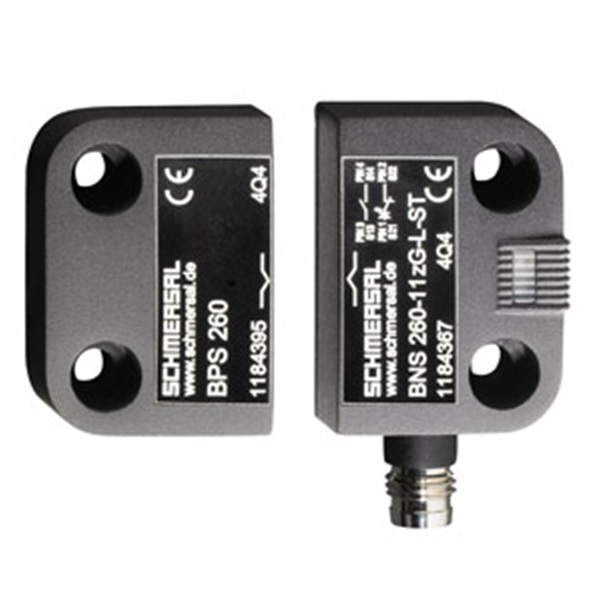

  • Coded - recommended actuator BPS260, must be purchased separately.
  • Protection class IP67.
  • Other varieties available on request.
  • Minor differences between the printed image and the original product may exist.

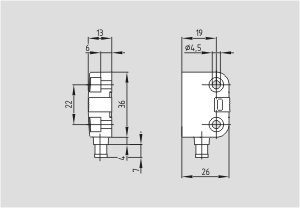

Code Cat# Dimensions W x H x L Switching Voltage and Capacity Contacts LED Switching Display Electrical Connection Door Hinge
1184377 BNS 260-02Z-ST-L 26mm x 36mm x 13mm Max. 75 VDC / Max. 10 VA 2NC No Connector M8 Left
