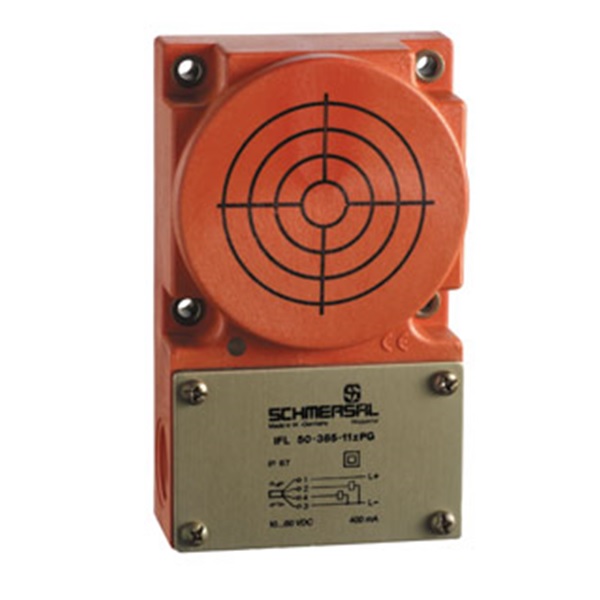

Schmersal Block Design DC-4 Wire Inductive Proximity Switch - IFL 50-385-11P-M20
Features
  • Schmersal proximity switches respond to targets that come within the active range of their generated sensing fields.
  • These units are completely self-contained, and house a field generator, amplifier, and other necessary circuitry to accomplish electronic switching.
  • Virtually unlimited service life.
  • Thermoplastic enclosure.
  • Double insulated.
  • Wiring compartment.
  • Three cable entries M20 x 1,5.
  • DC 4-wire.
  • Housing construction - block 385.
  • Other variants available on request.
  • Minor differences between the printed image and the original product may exist.
Code Cat# Dimensions W x H x L Supply Voltage Contacts Design of Control Output LED Switching Display Switching Distance Electrical Connection Notes
1174071 IFL 50-385-11P-M20 80mm x 135mm x 40mm 10-60VDC 1 NO / 1 NC (antivalent) PNP Yes - yellow LED 50mm Screw connection Indent Item
