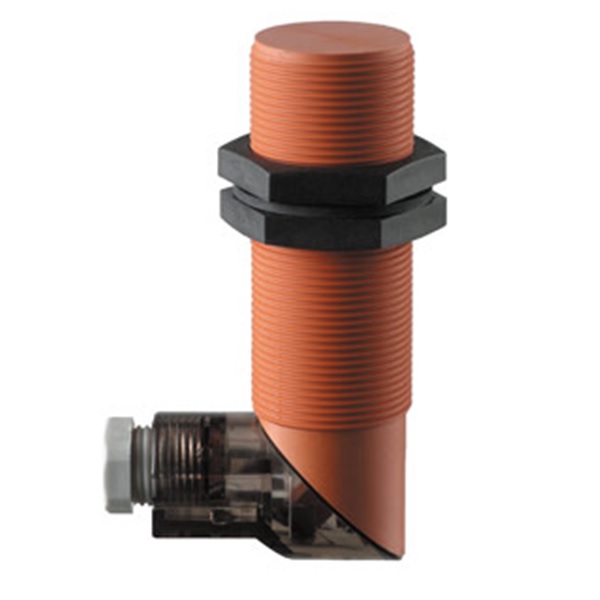

Schmersal M30 AC-2 Wire Inductive Proximity Switch - IFL 15-300-10/01
Features
  • Schmersal proximity switches respond to targets that come within the active range of their generated sensing fields.
  • These units are completely self-contained, and house a field generator, amplifier, and other necessary circuitry to accomplish electronic switching.
  • Virtually unlimited service life.
  • Thermoplastic enclosure.
  • Double insulated.
  • Wiring compartment.
  • One cable entry M16 x 1,5.
  • AC 2-wire.
  • Housing construction - cylinder, thread.
  • Other variants available on request.
  • Minor differences between the printed image and the original product may exist.

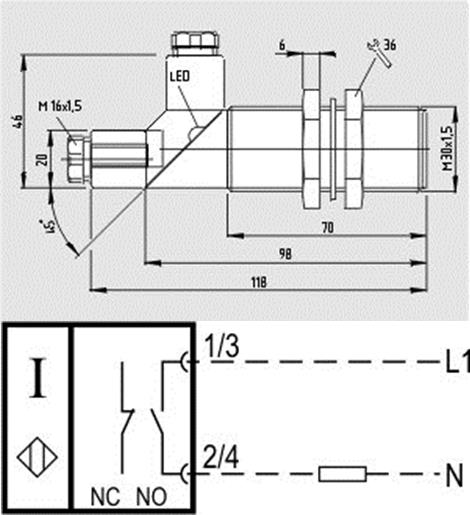

Code Cat# Dimensions L x Ø Supply Voltage Contacts Design of Control Output LED Switching Display Switching Distance Electrical Connection Notes
1060599 IFL 15-300-10/01 118mm x M30 15-250VAC 1 NO or 1 NC with wiring compartment PNP Yes - yellow LED 15mm Screw connection Indent Item
