Schmersal M18 DC-3 Wire Inductive Proximity Switch - IFL 5-18-10STP
Features
  • Schmersal proximity switches respond to targets that come within the active range of their generated sensing fields.
  • These units are completely self-contained, and house a field generator, amplifier, and other necessary circuitry to accomplish electronic switching.
  • Virtually unlimited service life.
  • Metal enclosure.
  • Connector M12.
  • DC 3-wire.
  • Housing construction - cylinder, thread.
  • Other variants available on request.
  • Minor differences between the printed image and the original product may exist.

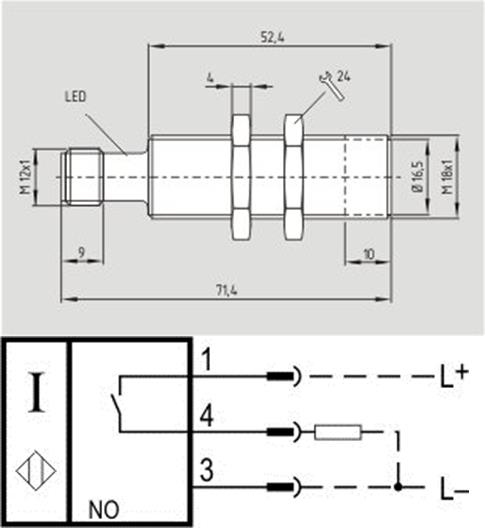

Code Cat# Dimensions L x Ø Supply Voltage Contacts Design of Control Output LED Switching Display Switching Distance Electrical Connection Notes
1099563 IFL 5-18-10STP 71.4mm x M18 10-30VDC 1 NO PNP Yes - yellow LED 5mm M12 connector Indent Item
