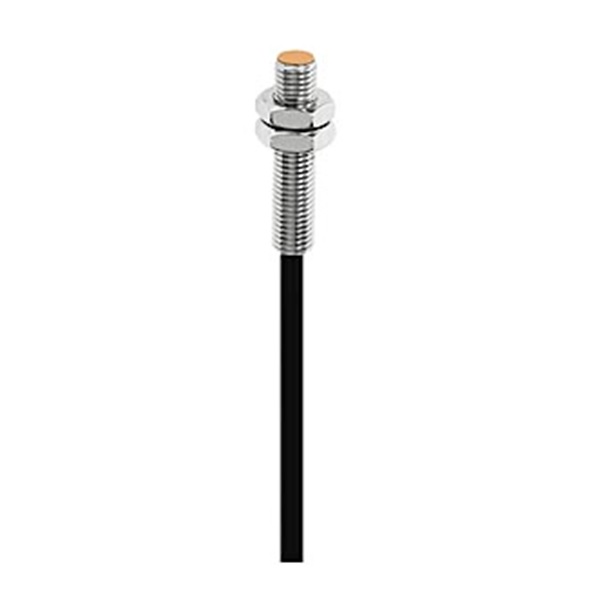

Schmersal M8 DC-3 Wire Inductive Proximity Switch - IFL 3B-8M-10P
IFL M8.jpg
Features
  • Schmersal proximity switches respond to targets that come within the active range of their generated sensing fields.
  • These units are completely self-contained, and house a field generator, amplifier, and other necessary circuitry to accomplish electronic switching.
  • Virtually unlimited service life.
  • Metal enclosure M8 x 1.
  • Miniature body.
  • DC 3-wire.
  • Housing construction - cylinder, thread.
  • High switching distance.
  • Mechanical installation conditions - quasi-embeddable.
  • Other variants available on request.
  • Minor differences between the printed image and the original product may exist.

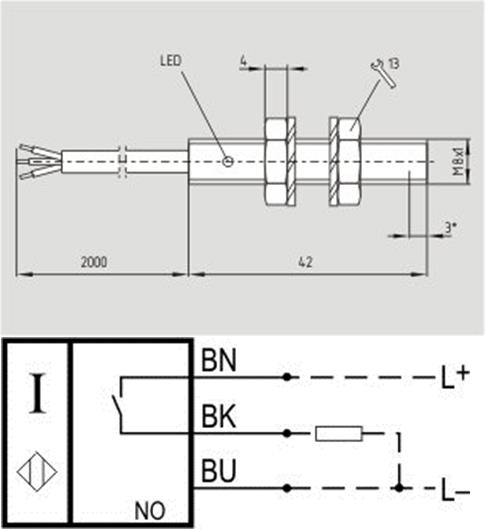

Code Cat# Dimensions L x Ø Supply Voltage Contacts Design of Control Output LED Switching Display Switching Distance Electrical Connection Notes
1110822 IFL 3B-8M-10P 42mm x M8 10-30VDC 1 NO PNP Yes - yellow LED 3mm 2m Cable Indent Item
